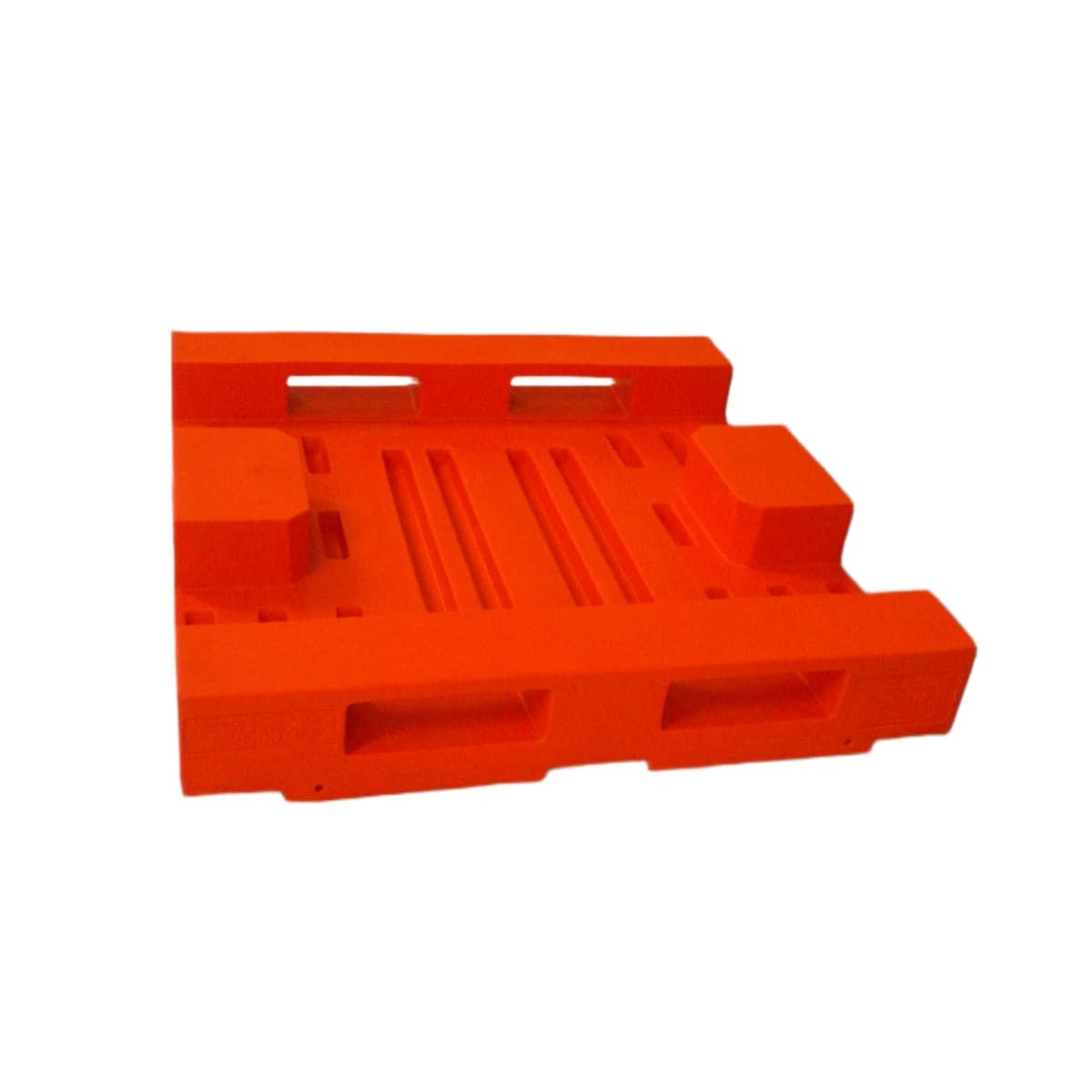

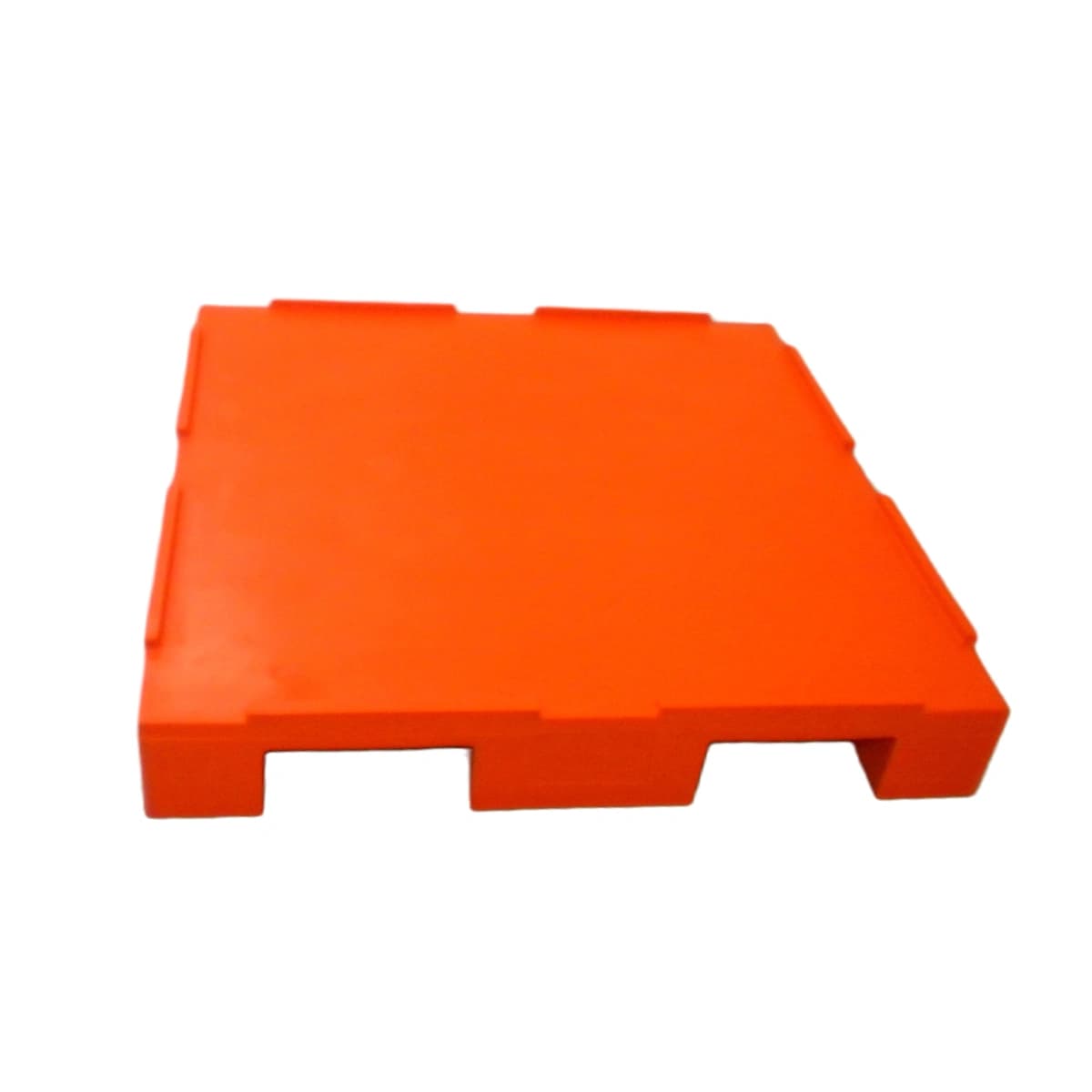

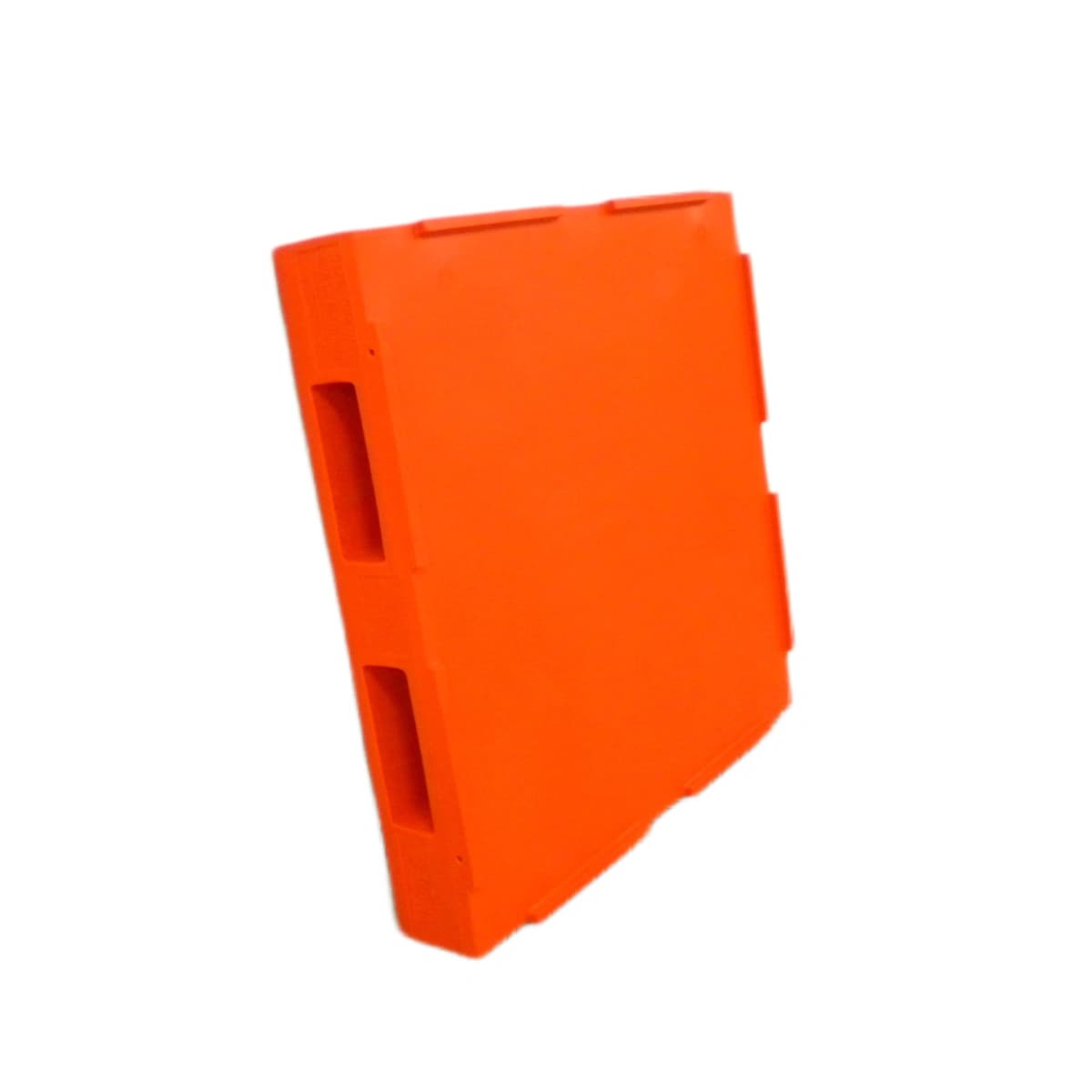

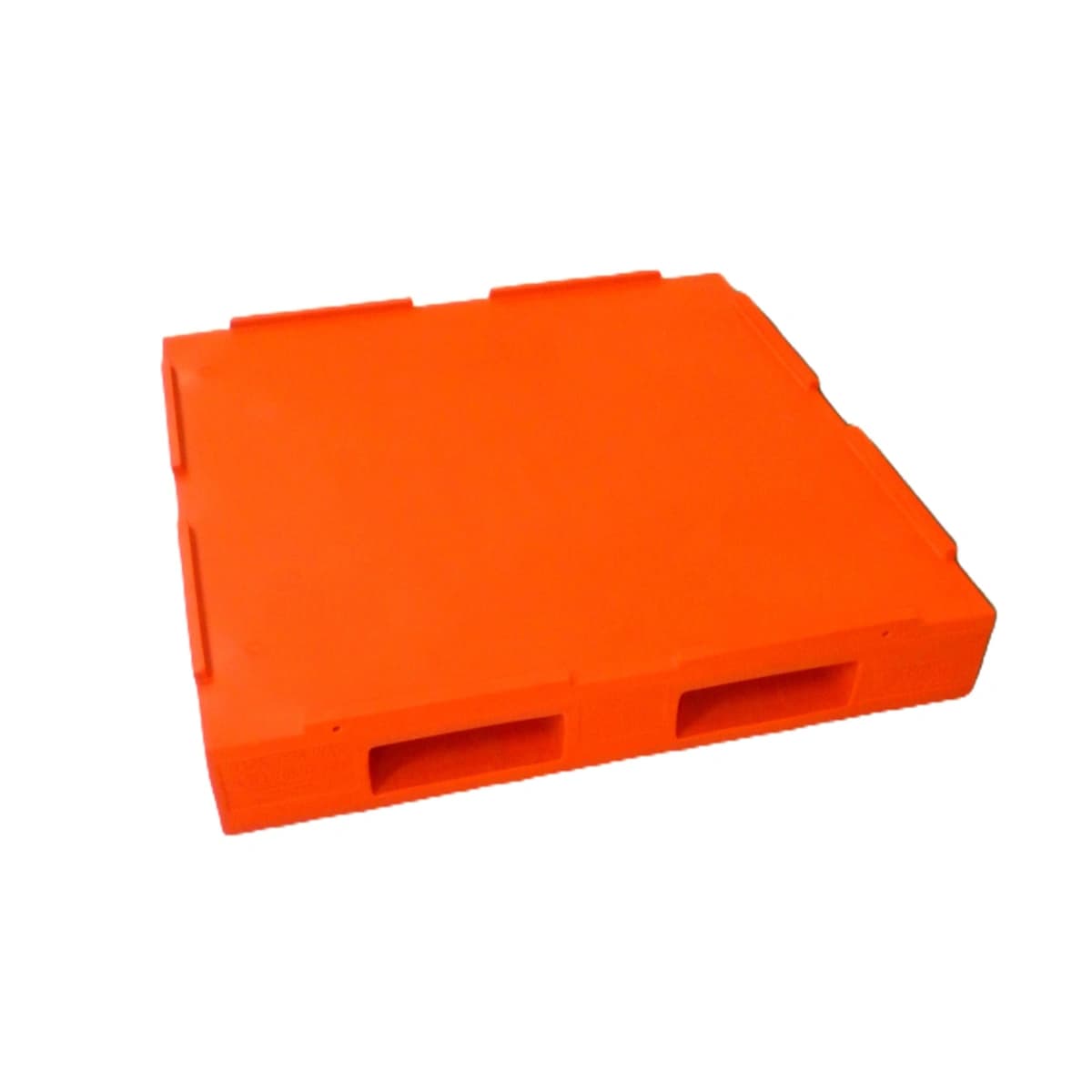

Automated Racking Pallet with Retaining Lip – 1160 x 1160mm

The lipped variant of Automated Systems Plastic Pallet incorporates a perimeter lip that retains goods on the pallet deck during automated shuttle movement and dynamic transit — preventing cargo shift and reducing the risk of product loss or system obstruction in high-speed automated racking environments.

The integral perimeter lip addresses a specific operational risk in shuttle racking and drive-in systems: goods shifting laterally during rapid automated pallet movement. This is particularly relevant for smaller, irregularly shaped, or load-unstable items that cannot be reliably contained by strapping or shrink wrap alone in high-throughput automated environments. By providing a mechanical cargo retention edge, the ECO-1160SRL reduces the incidence of pallet stoppages caused by misaligned goods triggering safety sensors in automated material handling systems.

Matching the standard Australian 1160 x 1160mm footprint with a 170mm height profile, the ECO-1160SRL maintains full dimensional compatibility with shuttle racking, drive-in racking, and automated material handling grids. Like the ECO-1160SR, it is constructed with high-strength steel reinforcement within a premium HDPE solid block framework — supporting 6,000KG static load and 1,500KG across automated racking pipelines while maintaining dimensional rigidity through repeated automated handling cycles.

The 32KG non-porous HDPE construction resists moisture, chemicals, and temperature variation, performing reliably across cold storage, FMCG, food and beverage, and pharmaceutical automated warehouse environments without the structural degradation, contamination risk, or pest habitation issues associated with timber alternatives.
